ADAS and AD

Delivering the building blocks to develop unique platforms for machine learning, computer vision, sensor fusion, and connectivity

Find a Partner
Boards & Kits
Overview

The AMD automotive product family of FPGAs and SoCs/MPSoCs enable the creation of highly differentiated Advanced Driver Assistance Systems (ADAS) and Autonomous Driving (AD) modules. From distributed smart sensors and centralized multi-sensor fusion systems to highly integrated domain controllers, developers can scale their device selection to meet specific processing needs and cost targets. AMD automotive solutions offer the ultimate in hardware/software partitioning flexibility combined with a variety of networking connectivity options, unique functional safety architecture configurations and security features for current and future ADAS and AD modules.

Design Examples Description Device Support

Click to enlarge

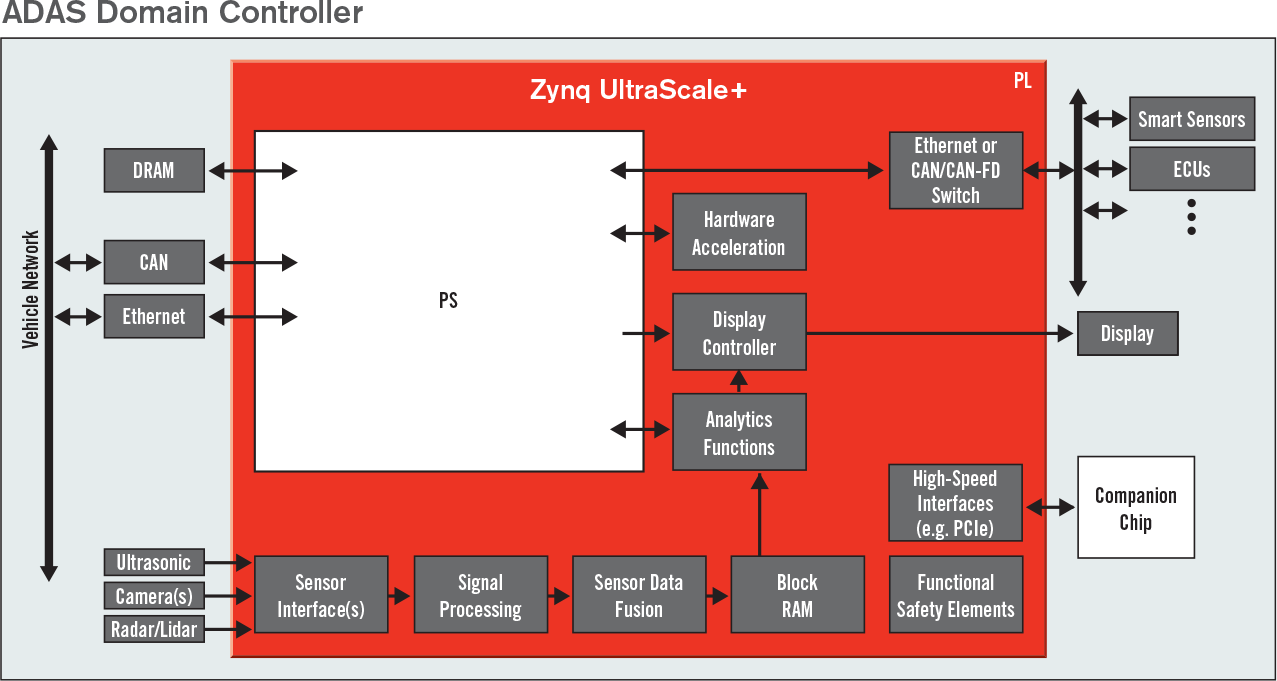

ADAS/AD Domain Controller

  • ARM A53 for object classification and connectivity to vehicle networks
  • Use ARM A53 or ARM Mali GPU for display functionality, e.g. image rendering or generation of overlays
  • PL for sensor interfacing, image/data pre-processing and fusion of sensor data
  • Optional hardware accelleration of software algorithms
  • Implement additional Functional Safety features in the PL
  • Use PL to add additional high-speed interfacing or switching capabilities
 Zynq UltraScale+ MPSoC

Click to enlarge

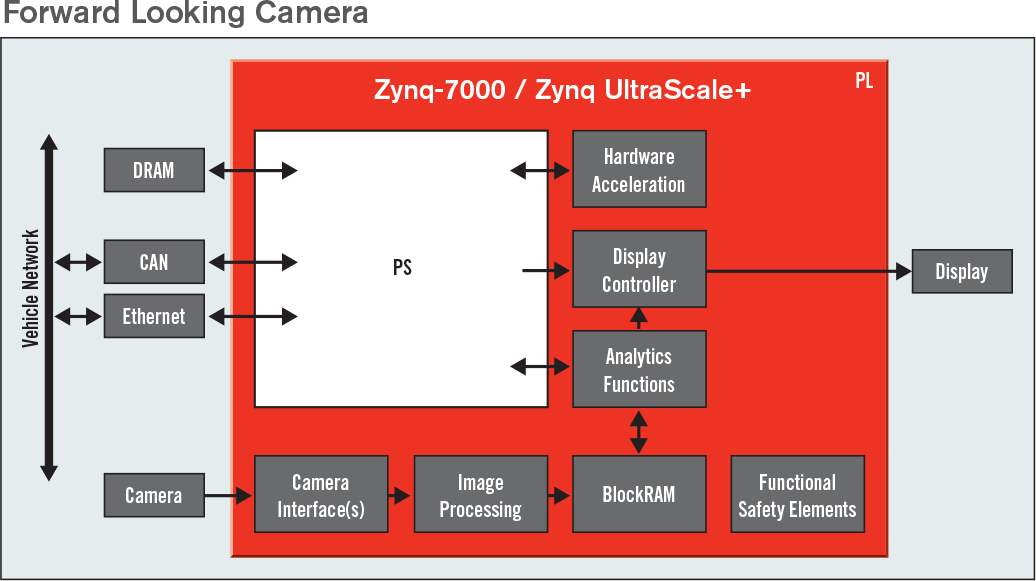

Forward Looking Camera

  • ARM A9 or A53 for object classification and connectivity to vehicle networks
  • PL for sensor interfacing, image pre-processing and hardware accelleration of software algorithms
  • Implement additional Functional Safety features in the PL
 Zynq 7000 / Zynq UltraScale+ MPSoC

Click to enlarge

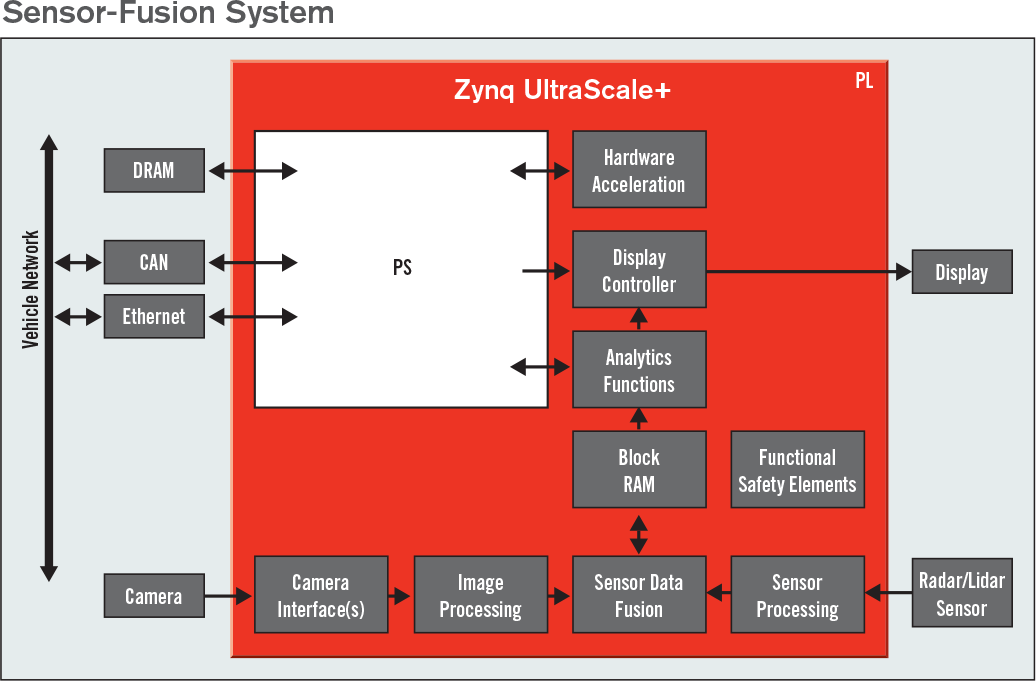

Sensor-Fusion System

  • ARM A53 for object classification and connectivity to vehicle networks
  • PL for sensor interfacing, image/data pre-processing and fusion of sensor data
  • Optional hardware accelleration of software algorithms
  • Implement additional Functional Safety features in the PL
 Zynq UltraScale+ MPSoC
