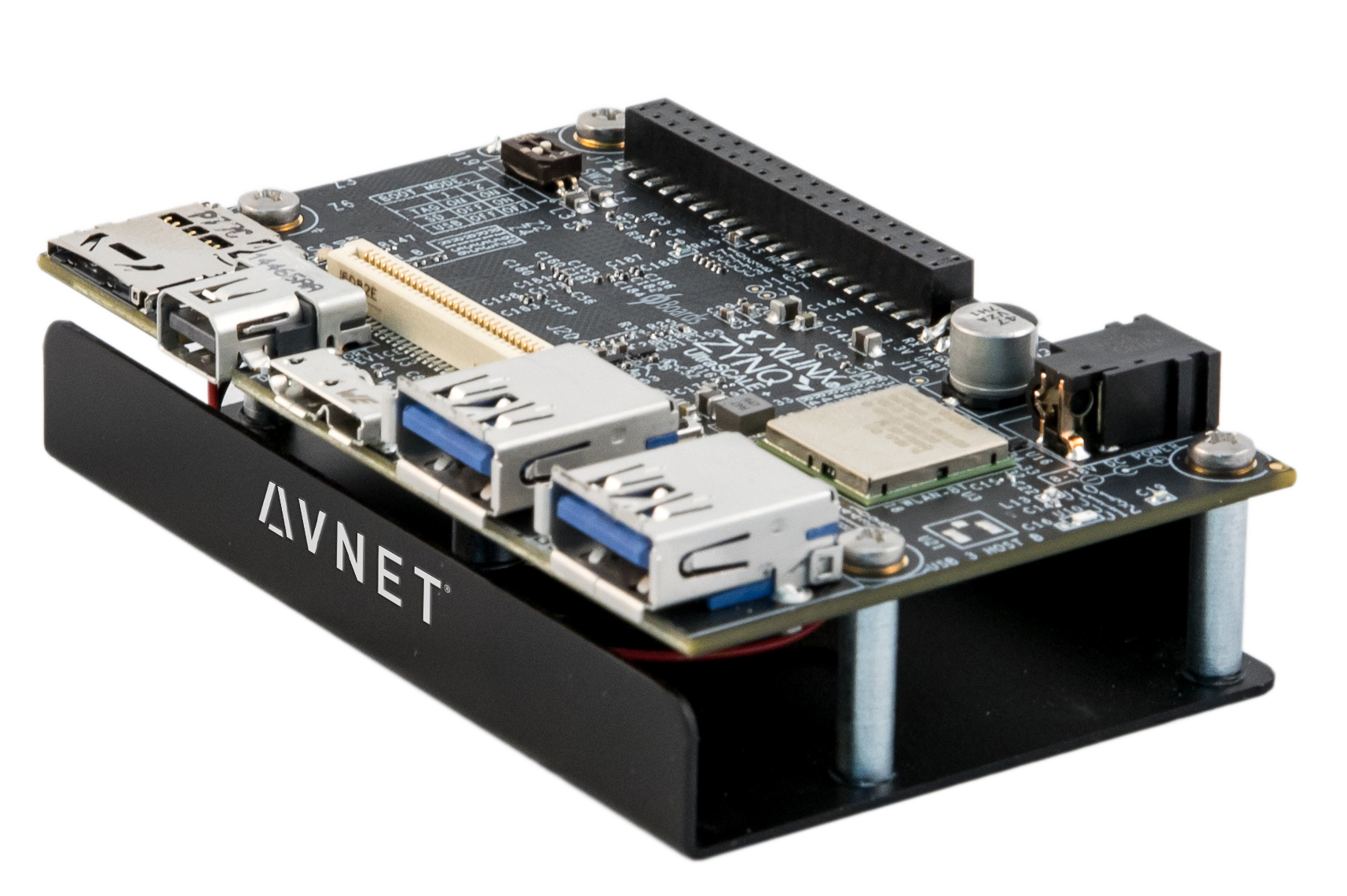

Avnet Ultra96


Product Description

Ultra96™ is an ARM-based, Xilinx Zynq UltraScale+™ MPSoC development board based on the Linaro 96Boards specification. The 96Boards’ specifications are open and define a standard board layout for development platforms that can be used by software application, hardware device, kernel, and other system software developers. Ultra96 represents a unique position in the 96Boards community with a wide range of potential peripherals and acceleration engines in the programmable logic that is not available from other offerings.

Key Features and Benefits

  • Linaro 96Boards Consumer Edition compatible
  • 85mm x 54mm form factor
  • 60-pin 96Boards High speed expansion header
  • 40-pin 96Boards Low-speed expansion header
  • 2x USB 3.0, 1x USB 2.0 Type A downstream ports
  • 1x USB 3.0 Type Micro-B upstream port
  • Mini DisplayPort (MiniDP or mDP)
  • Wi-Fi / Bluetooth
  • Delkin 16 GB MicroSD card + adapter
  • Micron 2 GB (512M x32) LPDDR4 Memory
  • Xilinx Zynq UltraScale+ MPSoC ZU3EG A484

What's Included

  • 16 GB pre-loaded microSD card + adapter
  • Quick-start instruction card
  • Ultra96 development board
  • Voucher for SDSoC license from Xilinx
