Versal Premium Series VPK120 Evaluation Kit

The VPK120 Evaluation Kit, equipped with the Versal® Premium series VP1202 ACAP, offers networked, power-optimized cores paired with multiple high-speed connectivity options. The kit is built for network and cloud applications requiring massive serial bandwidth, security, and compute density.

Buy

Overview

Product Description

The VPK120 Evaluation Kit offers networked, power-optimized cores paired with many high-speed connectivity options. The kit features the Versal Premium VP1202 ACAP, which integrates 100+Gb/s PAM4 transceivers, PCIe® Gen5 with DMA & CCIX / CXL, 100G Multirate Ethernet cores, 600G Ethernet cores, 400G High-Speed Crypto Engines, and more.

The VPK120 Evaluation Kit is built for network and cloud applications requiring massive serial bandwidth, security, and compute density, such as:

  • Metro/core transport
  • Data center interconnect
  • Security appliances
  • Search engines
  • Recommendation systems
  • Video analytics
  • Network testers
  • PCIe protocol analyzers
  • Digital adaptive radar

Key Features and Benefits

Versal Premium Series Capabilities

  • Equipped with Versal Premium VP1202 device
  • Ability to jump start hardware and software differentiation with pre-built, pre-engineered infrastructure for next-generation networks and cloud infrastructure

Breadth of Connectivity Options for Rapid Application Development

  • PCIe Gen5 interface for high compute performance across multiple markets
  • QSFP-DD optical interfaces, IEEE Std 1588, and STMs for networking
  • FMC+ connectors supporting a variety of optional plug-in cards

Co-Optimized Tools and Debug Method

  • Vivado® ML Design Suite, Vitis™ unified software platform
  • Shipped with pre-built boot images

Featured Xilinx Devices

Featuring the Versal® Premium XCVP1202-2MSEVSVA2785 ACAP

System Logic Cells (K) 1,969
LUTs 900,224
DSP Engines 3,984
Application Processing Unit Dual-Core Arm® Cortex®-A72
Real-Time Processing Unit Dual-Core Arm Cortex-R5F
GTYP Transceivers (32.75Gb/s) 28
GTM Transceivers 58G (100+G) 20 (10)
PCIe® w/ DMA & CCIX (CPM5) 2 x Gen5x8, CCIX
PCIe Express 2 x Gen5x4
100G Multirate Ethernet MAC 2
600G Ethernet MAC 1
400G High-Speed Crypto Engine 1
XPIO DDR + PL 570




Zynq Gen 3

Product Information

Specifications

Board Features

Featuring the Versal® Premium XCVP1202-2MSEVSVA2785 ACAP

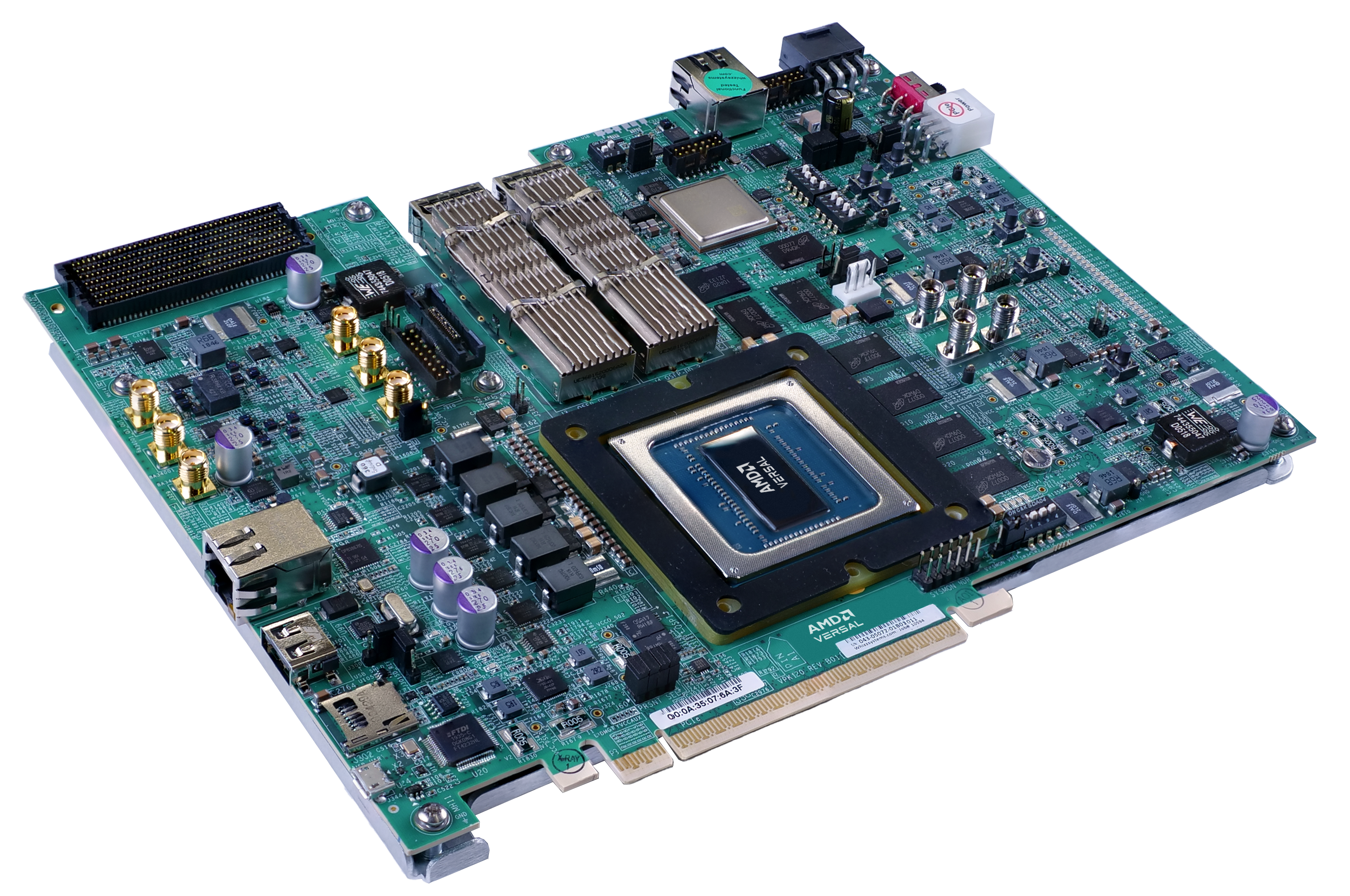

VPK120 board
Board Specifications Value
Length 24.13cm
Height 18.994cm
Thickness (±10%) 1.632mm
PCIe® Slots PCIe endpoint 16 lane edge connector
Operating Environmental Temperature 0C to +45C
Storage Environmental Temperature -25C to +60C
Configuration
JTAG Yes
QSPI Yes
MicroSD Yes
Memory
LPDDR4 Component 6 x 2GB
MicroSD Socket (Versal device) 16GB
Control I/O
User Pushbuttons 7
DIP Switches 4
User LEDs 4
System Monitor Yes
System Controller Yes
PMBUS Yes
Expansion Connectors
VITA 57.4 FMC+ One (8 GTY)
PCIe Gen5 x8 One edge connector
Communications & Networking
USB JTAG 1
USB 3.0 1
RJ-45 Tri-Speed Ethernet Connectors 2
QSFP-DD 2
Clocking
Programmable LPDDR4 Component  1
PCIe Reference Clock 1
Programmable 1588 eCPRI (SMA Connector) 6
Programmable System Controller 1
Power
12V Wall Adapter and ATX PCIe 8pin (6+2) Connector Yes
Power-on Reset Yes
What’s Inside

What's Inside the Box

Featuring the Versal® Premium XCVP1202-2MSEVSVA2785 ACAP

What's inside the box
