Zynq UltraScale+ RFSoC ZCU1285 Characterization Kit


Product Description

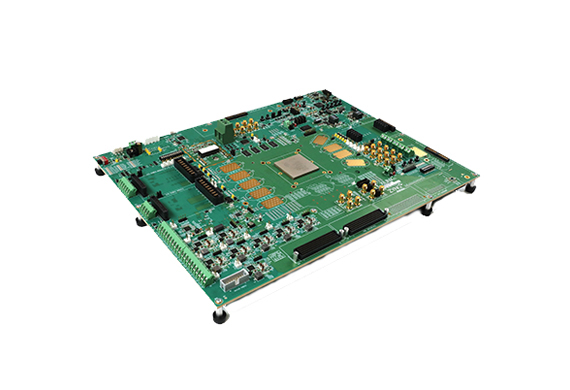

The Zynq® UltraScale+™ RFSoC ZCU1285 characterization kit provides everything you need to characterize and evaluate the integrated ADCs and DACs, as well as GTY, GTR transceivers available on the Zynq UltraScale+ Gen 2 XCZU39DR RFSoC. All 16 12-bit 2.220GSPS ADCs, all 16 14-bit 6.554GSPS DACs, all 16 GTY transceivers, and all 4 GTR transceivers are accessible through Samtec BullsEye connectors. The BullsEye connector allows you to connect to custom baluns and test equipment for the highest level of flexibility in testing custom applications. Find out more and see what is included in the kit.

Key Features & Benefits

  • Hardware environment for characterizing and evaluating the integrated ADC, DAC, and transceivers on the Zynq UltraScale+ XCZU39DR-2FFVF1760I RFSoC
  • Integrated 16x16 ADC, DAC design example
  • Integrated Bit Error Ratio Test (IBERT) reference design
  • BullsEye connectors supporting full ADC, DAC, GTY transceivers, and GTR transceivers
  • SMA power probe channels for all ADC/DAC rails, all GTY/GTR rails, and VCCINT/VCCO_HP/VCCO_HD rails
  • Analog RF SuperClock module supporting all ADC/DAC clock requirements
  • GT SuperClock module supporting GTY/GTR reference clock requirements
  • One high pin count (HPC) FPGA Mezzanine Card (FMC) connector
  • One low pin count (LPC) FMC connector

Featured Xilinx Devices

Featuring the Zynq UltraScale+ XCZU39DR-2FFVF1760I RFSoC

12-bit, 2.220GSPS RF-ADC 16
14-bit, 6.554GSPS RF-DAC 16
System Logic Cells (K) 930
DSP Slices
Memory (Mb) 60.5
33G Transceivers 16
Maximum I/O Pins 408

Board Features

Featuring the Zynq® UltraScale+™ XCZU39DR-2FFVF1760I RFSoC

Zynq UltraScale+ XCZU39DR-2FFVF1760I RFSoC Callout
Board Specifications Value
Length 16 inch (40.6 cm)
Height 12.6 inch (30.0 cm)
Thickness (+/-5%) 0.13456 inch (0.3418 cm)
Operating Environmental Temperature 0C to +45C
Storage Environmental Temperature -25C to +60C
PS DDR3 Component 4x2GB
Communications & Networking
Samtec BullsEye Connector for ADC 2
Samtec BullsEye Connector for DAC 2
Samtec BullsEye Connector for GTY 4
Samtec BullsEye Connector for GTR 1
DIP Switches Yes
LEDs Yes
Push Buttons Yes
Expansion Connectors
FMC-HPC Connector 1
FMC-LPC Connector 1
GT SuperClock-2 Module Yes
Analog SuperClock-RF2 Module Yes
Control & I/O
12V Wall Adapter Yes
ATX Power Compatible Yes
What’s Inside

What's Inside the Box

Featuring the Zynq® UltraScale+™ XCZU39DR-2FFVF1760I RFSoC


Featured Documentation

Filter Documentation

Step 1: Board Revision

Step 2: Tools Version

Step 3: Show Documentation

Click to update search results table
Tools & IP

Design Tools

Name Description License Type
Vivado Design Suite: System Edition The Xilinx Vivado® Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for all programmable devices. Node locked & Device-locked to the Zynq® UltraScale+™ XCZU39DR RFSoC, with 1 year of updates
Xilinx SDK Full suite of tools for embedded software development and debug targeting Xilinx platforms. Included
PetaLinux Tools Configure, build and deploy Linux operating system to Xilinx platforms. Included
Board Support Packages (BSP) Pre-configured boot loaders, system images and bitstream. Included

Intellectual Property

Name Description License Type
Memory Interface Generator (MIG) MIG is a free software tool used to generate memory controllers and interfaces for Xilinx devices. Included

Additional Tools, IP and Resources

Provider Name Product Category Item Description
Open Source Software Tool TeraTerm One of many possible terminal emulators used for serial connection from your PC to the evaluation kit.
Xilinx Package Files Package files to demonstrates the multi-tile synchronization (MTS) feature on Zynq UltraScale+ RFSoC
