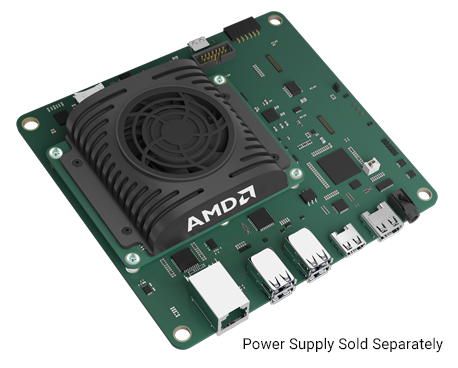

Kria KV260 Vision AI Starter Kit

by: AMD

The development platform for Kria K26 SOMs, the KV260 is built for advanced vision application development without requiring complex hardware design knowledge. Power supply sold separately.


Out-of-the-Box Ready for Application Development



  • Multi-camera Support: Up to 8 interfaces
  • 3 MIPI sensor interfaces, USB cameras
  • Built-in ISP component (OnSemi)
  • HDMI, DisplayPort outputs


  • 1Gb Ethernet
  • USB 3.0 / 2.0


  • Extend to any sensor or interface
  • Access Pmod ecosystem


  • Low cost, enabling design exploration
  • Available from AMD and distributors

Getting Started

Step-by-Step Guide to Get Up and Running

The Kria KV260 Vision AI Starter Kit is designed to provide customers a platform to evaluate their target applications for smart city and machine vision, security cameras, retail analytics, and other industrial applications.

See how quickly and easily you can launch our Smart Camera accelerated application, with no FPGA experience or tools installation required. Visit the Getting Started page for more details to get up and running in just under 1 hour!

Product Information

Parameter KV260
Device Zynq™ UltraScale+™ MPSoC
Form factor SOM + Carrier Card + Thermal Solution
Starter kit dimensions 119mm x 140mm x 36mm
Thermal cooling solution Active (Fan + Heatsink)
System logic cells 256K
Block RAM blocks 144
UltraRAM blocks 64
DSP slices 1.2K
Ethernet interface One 10/100/1000 Mb/s
DDR memory 4GB (4 x 512Mb x 16 bit) [non-ECC]
Primary boot memory 512Mb QSPI
Secondary boot memory SDHC card
Device Security Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot.
Image sensor processor OnSemi AP1302 ISP
IAS MIPI sensor interfaces x2
Raspberry Pi camera interface x1
Pmod 12-pin interface x1
USB3.0/2.0 interface x4
DisplayPort 1.2a x1
HDMI 1.4 x1

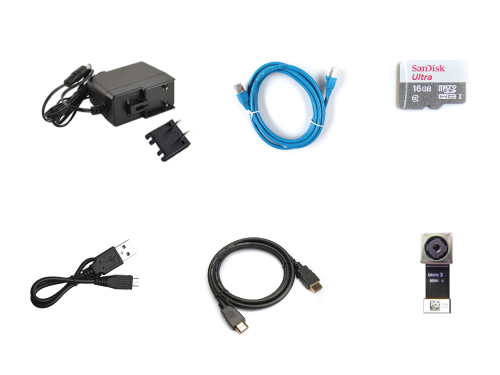

What's Inside

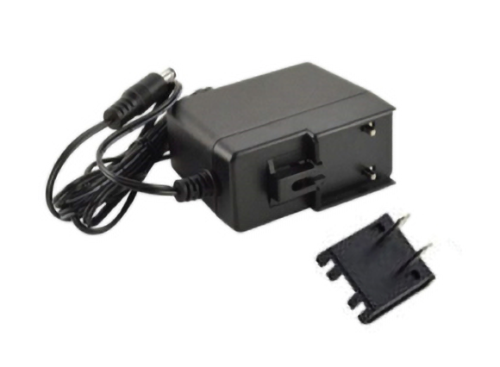

*Power Supply Sold Separately

  KV260 Vision AI Starter Kit KR260 Robotics Starter Kit K26 Commercial SOM K26 Industrial SOM
Product Type Development / Evaluation Fully Qualified and Certified Commercial Grade Production Module Fully Qualified and Certified Industrial Grade Production Module
Operating Temp Range 0°C to 35°C 0°C to 85°C –40°C to 100°C
Target Use Run Application Designs and Demos with Ease Plugs into a carrier card designed for specific target application which includes Smart City, Robotics, Machine Vision, Industrial Communication & Control
Warranty 90 days 2 years 3 years
Expected Product Lifetime - - 5 years 10 years
Price $249 $349 $325 $450


Default Default Title Document Type Date
Training & Support

accelerated applications

Pre-Built Hardware and Software Platform

Retail Analytics

Retail Analytics



Smart Camera

Smart Camera

Machine Vision

Machine Vision

Accelerated applications enable developers to program and differentiate their designs at the software level, without requiring FPGA programming experience. Paired with the KV260 Vision AI Starter Kit, production-ready accelerated applications can be up and running in under 1 hour, allowing developers to focus on differentiation and shortening the runway to volume deployment. Common edge vision applications are available today, with more on the way from AMD and a growing ecosystem of partners. Check out the Kria App Store to learn more.

Ready to scale your edge design?

Kria K26 System-on-Modules are ready for production deployment

Available in Commercial and Industrial grades, the Kria K26 Adaptive SOM is a small form factor card ideal for production deployment in Smart Camera, Embedded Vision, and other Security, Retail Analytics, Smart City, and Machine Vision applications.

Accelerate Your AI-Enabled Edge Solution with Adaptive Computing

Learn all about adaptive SOMs, including examples of why and how they can be deployed in next-generation edge applications, and how smart vision providers benefit from the performance, flexibility, and rapid development that can only be achieved by an adaptive SOM.

Accelerate Your AI-Enabled Edge Solution with Adaptive Computing


Ask our community of experts and superusers. Post your questions, find answers, and share your expertise with other developers on the Kria SOMs Forum.
