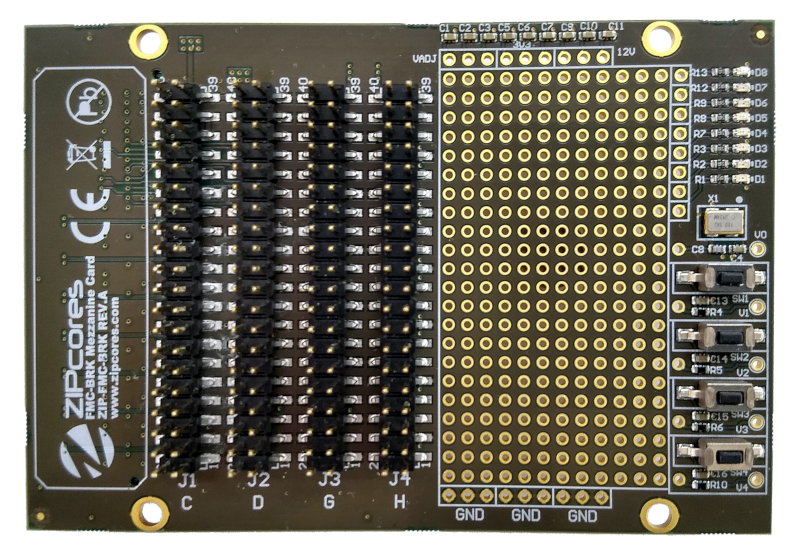

FMC-BRK Mezzanine Card

by: Zipcores

FMC breakout-card for high-speed connectivity and prototyping. Features matched differential pairs and a ground plane for superior signal integrity. Standard 0.001" (2.54mm) pitch headers and large prototyping area with 100 MHz user osc, LEDs and buttons. The FMC-card is compatible with all AMD development boards that feature the standard FMC-LPC or HPC connector (ANSI/VITA 57.1)


Key Features and Benefits

  • Standard ANSI/VITA 57.1 FMC™ LPC connector
  • 4 x headers provide passive connectivity to all 160 pins on the FMC connector (rows C,D,G,H)
  • All pin and through-hole spacings are standard 0.100” pitch or 2.54 mm
  • Access to 34 x differential pairs (LA00:34) or 68 x single-ended signals
  • Access to 2 x GTP transceiver pairs including GTP clock
  • Access to 2 x user-clock differential pairs
  • Access to the I2C, JTAG and FMC state flags
  • Access to the VADJ, 3.3V and 12V FMC power supplies
  • All differential pairs routed with the same track lengths
  • All differential signals impedance-matched for LVDS 100 ohm termination
  • Separate VADJ, 3.3V, 12V and GND through-hole vias
  • Separate power pins de-coupled to ground with 100 nF capacitors
  • Separate PCB ground-plane for improved signal integrity and noise immunity
  • Features large 22 x 12 prototyping area for custom circuitry and user-defined functions
  • 8 x user LEDs with 332 ohm series resistors
  • 4 x user push-buttons with RC de-bouncing circuit
  • 100 MHz low-jitter single-ended clock oscillator
  • 2 x M3 mounting holes for securing the FMC connector
  • 2 x M3 mounting holes for supporting standoff 'legs'
  • Dimensions approx 10 x 6.7 cm
  • Compatible with a wide range of FMC base-boards

What's Included

  • Example source code for LVDS or single-ended connectivity
  • FMC mounting screws and spacers
