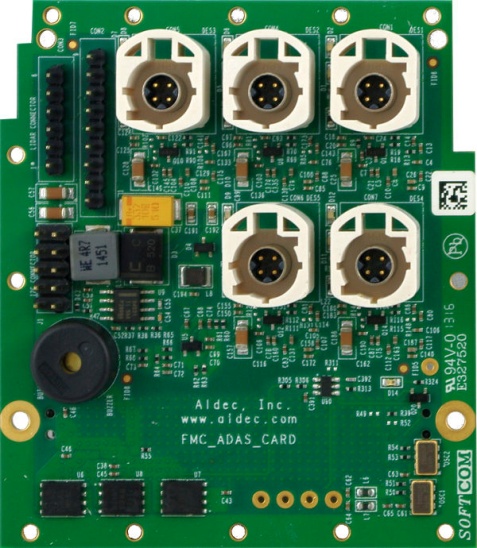

TySOM-2-FMC-Vision daughter board is designed for Advanced Driver Assistant Systems. It includes 5 High Speed Data (HSD) connectors for vehicle infotainment and cameras, 1 URM37_V4 ultrasonic sensor connector and 1 LIDAR-lite connector. This daughter board is compatible with the boards that support FMC HPC connector such as TySOM-2-7Z045, TySOM-2-7Z100 and TySOM-2-7Z030.

Key Features and Benefits

  • Ultrasonic sensor connector
  • LIDAR connector
  • Camera coonectors
  • FMC HPC connector

What's Included

  • 2 oscillators
  • 5 camera socket modules (HSD connector + deserializer)
  • Buzzer
  • FMC HPC standard connector compliant with VITA 57.1-2010
  • LIDAR connector
  • Ultrasonic sensor connector
