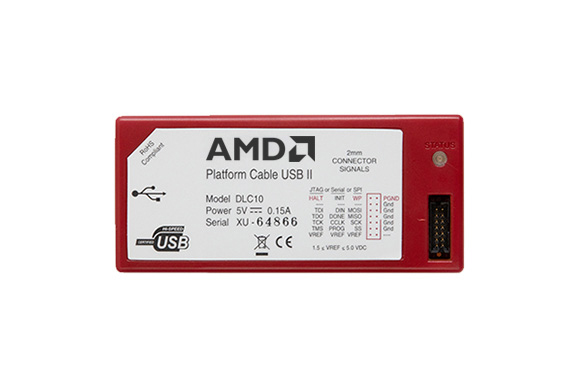

Platform Cable USB II

  • Price: $225
  • Part Number: HW-USB-II-G
  • Lead Time: 2 Weeks
  • Device Support:

Product Description

Xilinx is now offering its second generation Pb-Free (RoHS compliant) USB compatible cable for in-circuit configuration and programming of all Xilinx devices.

The Platform Cable USB II provides integrated firmware to deliver high-performance, reliable and user-friendly configuration of Xilinx FPGAs and programming of Xilinx PROM and CPLD devices. The Platform Cable USB II cable optimizes direct programming of third-party SPI flash memory devices and indirect programming of SPI or parallel NOR flash memory devices via the FPGA JTAG port. In addition, Platform Cable USB II is a cost effective tool for debugging embedded software and firmware when used with Xilinx applications such as the Embedded Development Kit and ChipScope™ Pro Analyzer.

Platform Cable USB II is an upgrade to and backwards compatible with Platform Cable USB. It has industry-leading performance and is compatible with Full Speed (USB 1.1) and Hi-Speed (USB 2.0) ports.

Comparison Metric Platform Cable USB II SmartLynq Data Cable
Device Programming and Hardware Debug Y Y
Basic Software Debug Y Y
OS / Hypervisor Aware Debug N Y
Remote Access/Debug Capability N Y
USB 2.0 Host Interface Y Y
10/100/1000 Ethernet Host Interface N Y
Default Bitstream Programming Speed (MB/s) 0.4 4
JTAG Max Clock Speed (MHz) 12 40
Connection to Target via PC4 JTAG or Flying Leads (provided) Y Y
GPIO Available with Flying Leads Cable (provided) N Y
Hardware Server Application On Host Local to Cable
